Description

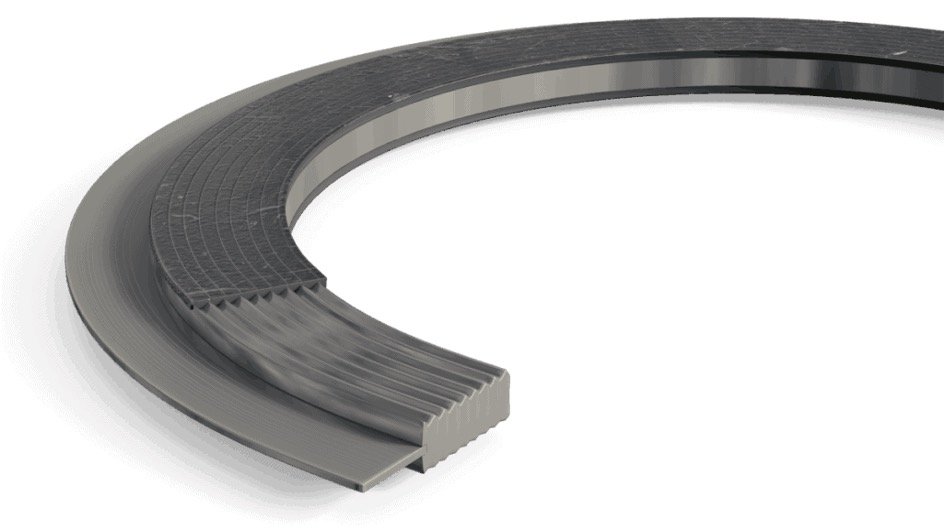

The Spitmaan Kamprofile  gasket is comprised of a concentric serrated solid metal core with a soft, conformable sealing material bonded to each face. The soft facing material provides low stress gasket seating, while the serrated geometry of the metal core enhances sealing performance by inducing stress concentrations on the sealing surfaces. The serrations minimise lateral movement of the facing material, while the metal core provides rigidity and blowout resistance. The Spiitmaan gasket exhibits excellent compressibility and recovery characteristics, maintaining joint tightness under pressure and temperature fluctuations, temperature differential across the flange face, flange rotation, bolt stress relaxation, and creep. Suitable for vacuum to extremely high pressure application

Application guidelines

Applications include Oil Refineries, Chemical, Petrochemical, Marine, Power Plants, Pulp, Pipelines, Pressure vessels on steam, metallurgical, nuclear, and hydraulic plants including heat exchangers

Suitable for standard ASME B 16.20a:1994,ASME B 16.5,ASME B16.5 Series A(MSS- SP 44),ME B16.5 Series B(ASME B16.47 supersedes API 605),IS 7719:2013,DIN & JIS flanges

Non-standard dimensions Ø10 mm up to Ø3500 mm

Non-circular manholes, handholes, tubecaps and plugs for boilers and vessels

Typical Profiles

XX – Without Outer Ring IOR – With Integral Outer Ring LOR – With loose Outer Ring



Core material options

304	310	Incoloy®	Alloy 20
304L	321	B2 & C276	Duplex®
316	347	Monel®
316L	Inconel®	17-7 PH



Facing materials options

• Standard Flexible Graphite (SGR-450°C)

• High Temperature Graphite (HGR-650°C)

• Expanded PTFE (EPTFE-260°C)

Design Factors – m =2 ,  Y = 2500 psi

Size/Range –upto 4000 mm ,  metal core 4mm & 3mm thick, Soft Layers – 0.5mm thick on either

Part Number

KAM-Profile Type- Core Material-Facing material – For Example - KAMIOR304SGR – Kamprofile gasket with integral outer ring, SS304 core material and standard graphite facing

Notes

Properties and application parameters shown throughout this data sheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult SPITMAAN®. Failure to select proper sealing products could result in property damage and/or serious personal injury. Specifications are subject to change without notice; this edition cancels all previous issues.
