PTFE Lined Pipe
PTFE Lined Pipe
NB |
∅ A±1 |
∅ B |
∅ C |
PCD |
∅ E |
G |
No. OF HOLES L |
HOLE DIA M |
PIPE THK. K |
LINER THK. S +0-1 |
FL. FACE THKH (MIN) |
∅ Q |
D |
LENGTH |
||
| 15.00 | 14.00 | 21.00 | 34.90 | 60.30 | 88.90 | 11.10 | 4.00 | 15.90 | 2.90 | 4.00 | 2.40 | 30.20 | 4.80 | 100-1500 | ||
| 20.00 | 19.60 | 26.60 | 42.70 | 69.80 | 98.40 | 12.70 | 4.00 | 15.90 | 3.40 | 4.00 | 2.40 | 38.10 | 3.20 | 100-3000 | ||
| 25.00 | 19.60 | 26.60 | 50.80 | 79.40 | 108.00 | 14.20 | 4.00 | 15.90 | 3.40 | 4.00 | 2.40 | 49.20 | 3.20 | 100-3000 | ||
| 32.00 | 28.10 | 35.10 | 63.50 | 88.90 | 117.50 | 15.80 | 4.00 | 15.90 | 3.60 | 4.00 | 2.40 | 58.70 | 4.70 | 110-6000** | ||
| 40.00 | 33.90 | 40.90 | 73.00 | 98.40 | 127.00 | 17.50 | 4.00 | 15.90 | 3.70 | 4.00 | 2.40 | 65.10 | 4.70 | 110-6000** | ||
| 50.00 | 45.50 | 52.50 | 92.10 | 120.70 | 152.40 | 19.10 | 4.00 | 19.00 | 3.90 | 4.00 | 2.40 | 77.10 | 6.30 | 125-6000** | ||
| 65.00 | 55.70 | 62.70 | 104.80 | 139.70 | 177.80 | 22.20 | 4.00 | 19.00 | 5.20 | 4.00 | 2.40 | 90.50 | 4.80 | 130-6000** | ||
| 80.00 | 70.90 | 77.90 | 127.00 | 152.40 | 190.50 | 23.80 | 4.00 | 19.00 | 5.50 | 4.00 | 2.40 | 108.00 | 6.40 | 140-6000** | ||
| 100.00 | 95.30 | 102.30 | 157.20 | 190.50 | 228.60 | 23.80 | 8.00 | 19.00 | 6.00 | 4.00 | 2.40 | 135.00 | 9.50 | 140-6000** | ||
| 125.00 | 119.20 | 128.20 | 185.70 | 215.90 | 254.00 | 23.80 | 8.00 | 22.20 | 6.60 | 5.00 | 3.20 | 163.50 | 12.70 | 150-6000** | ||
| 150.00 | 145.10 | 154.10 | 215.90 | 241.30 | 279.40 | 25.40 | 8.00 | 22.20 | 7.10 | 5.00 | 3.20 | 192.10 | 14.30 | 150-6000** | ||
| 200* | 197.40 | 206.40 | 269.90 | 298.50 | 342.90 | 28.60 | 8.00 | 22.20 | 6.35 | 5.00 | 3.20 | 246.10 | 15.80 | 150-3000 | ||
| 250* | 249.30 | 260.30 | 323.90 | 362.00 | 406.40 | 30.20 | 12.00 | 25.40 | 6.35 | 6.00 | 4.00 | 304.80 | 19.00 | 160-3000 | ||
| 300* | 300.10 | 311.10 | 381.00 | 431.80 | 482.60 | 31.80 | 12.00 | 25.40 | 6.35 | 6.00 | 4.00 | 365.10 | 23.80 | 170-3000 | ||
| 350* | 328.70 | 339.70 | 412.80 | 476.30 | 533.40 | 34.90 | 12.00 | 28.60 | 7.92 | 6.00 | 4.00 | 400.00 | 22.20 | 180-2500 | ||
| 400* | 379.50 | 390.50 | 469.90 | 539.80 | 596.90 | 36.50 | 16.00 | 28.60 | 7.92 | 6.00 | 4.00 | 457.20 | 26.90 | 200-2000 | ||
| 450* | 429.30 | 441.30 | 533.40 | 577.90 | 635.00 | 39.70 | 16.00 | 31.80 | 7.92 | 6.50 | 4.40 | 504.80 | 28.50 | 210-1000 | ||
| 500* | 475.90 | 488.90 | 584.20 | 635.00 | 698.50 | 42.90 | 20.00 | 32.00 | 9.52 | 7.00 | 4.80 | 558.80 | 30.10 | 250-1000 | ||
| 600* | 575.50 | 590.50 | 692.20 | 749.30 | 812.80 | 47.60 | 20.00 | 35.00 | 9.52 | 8.00 | 5.60 | 663.50 | 34.90 | 250-1000 | ||
| 700* | 670.80 | 685.80 | 801.60 | 865.30 | 928.90 | 71.50 | 28.00 | 35.00 | 12.70 | 8.00 | 5.60 | 728.30 | 54.20 | 375—1500 | ||
| 750* | 721.60 | 736.60 | 858.90 | 916.20 | 986.20 | 74.80 | 28.00 | 35.00 | 12.70 | 8.00 | 5.60 | 782.50 | 62.10 | 400—1000 | ||
| 800” | 772.40 | 787.40 | 916.20 | 979.80 | 1062.50 | 80.90 | 28.00 | 41.20 | 12.70 | 8.00 | 5.60 | 833.40 | 63.90 | 420—1000 | ||
** STANDARD LENGTH IS 3000 mm, LONGER LENGTHS CAN BE PROVIDED ON REQUEST.

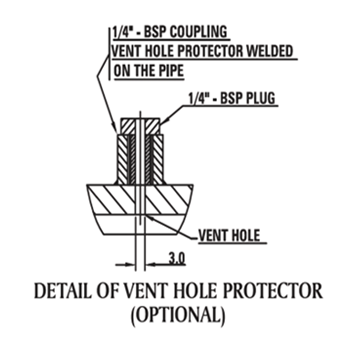

SPECIFICATIONS:
1. ALL DIMENSIONS ARE IN mm
2. PIPE:
i ASME B 36.10, ASTM A 106 GR. B Sch.40 UPTO 150NB & 200NB ONWARDS MIN. Sch. 20 *
ii 450NB & ABOVE Sch. PIPE AS ABOVE OR WELDED CONSTRUCTION FROM IS 2062 PLATE (WITH SPOT X-RAY)
3. FLANGE: ASME B 16.5, 150#, IS 2062 Gr. A/ ASTM A 105
4. LINER: ASTM D 4895, PTFE
5. THE TOLERANCES ON LENGTH OF PIPING WILL BE ±3.2
6. LINING & OTHER DIMENSIONAL TOLERANCES AS PER ASTM F 1545-15a
7. OTHER SPECIFICATIONS /DIMENSIONS / VACUUM SERVICE AVAILABLE ON REQUEST 8. P = G-2mm, J = 0.8G
