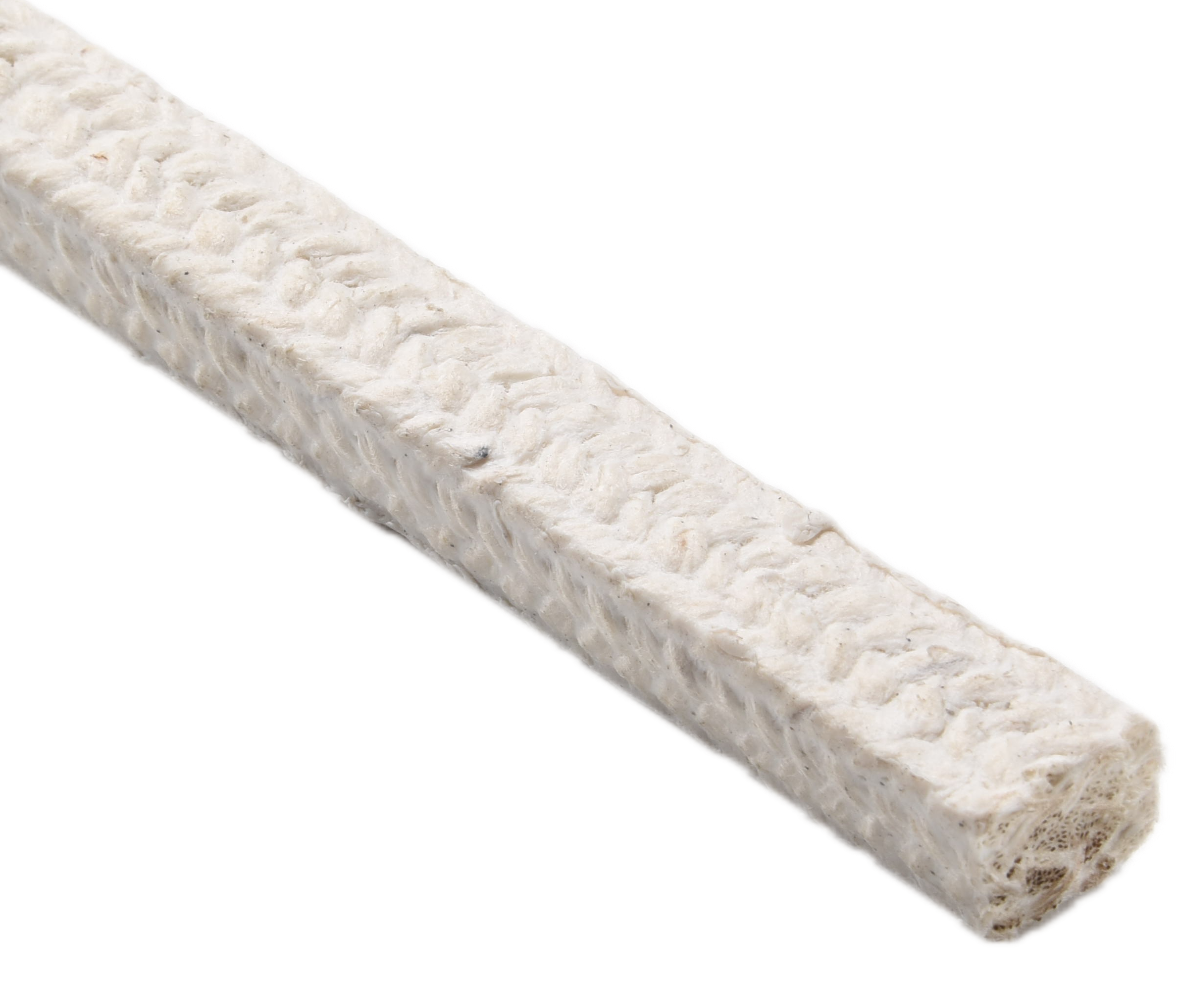

Ramie Packing
Style 169
Style 169
Description Present day gland packing manufacturing activities are concentrated on synthetic yarn sealing material, there are other natural fibers still play a versatile role with their unique properties. Prominent among them is Ramie an extremely strong top quality fiber of plant kingdom. To manufacture gland packings these fibers are uniquely impreganated with PTFE dispersion by a proprietary process and further treated with inert lubricant.
Advantages Advantages: • Universally applicable on marine applications • Durability of Ramie enhanced by lubricants. • Immune to salt water, good water retention.
Service The packing is Duplex Braided which maintains uniform density and compressibility. This natural fiber has very great strength than other vegetable fibers. The rot resistance is excellent. This pacing is having high resilience, flexibility, resistance to extrusion and abrasion, low wear character. Heat build up is negligible due to low friction properties.
Technical Data
Property | Value |
---|---|
Continuous Temperature | -50 ºC |
Short Term Temperature | 110 ºC |
Pressure (Bar) Static | 20 |
Pressure (Bar) Reciprocating | 30 |
Pressure (Bar) Rotatory | 15 |
Speed Mtr/S Static | 0.25 |
Speed Mtr/S Reciprocating | 1 |
Speed Mtr/S Rotatory | 8 |
pH | 4-10 |
