Graphite Gland Packings
STYLE 80 I / SS
STYLE 80 I / SS

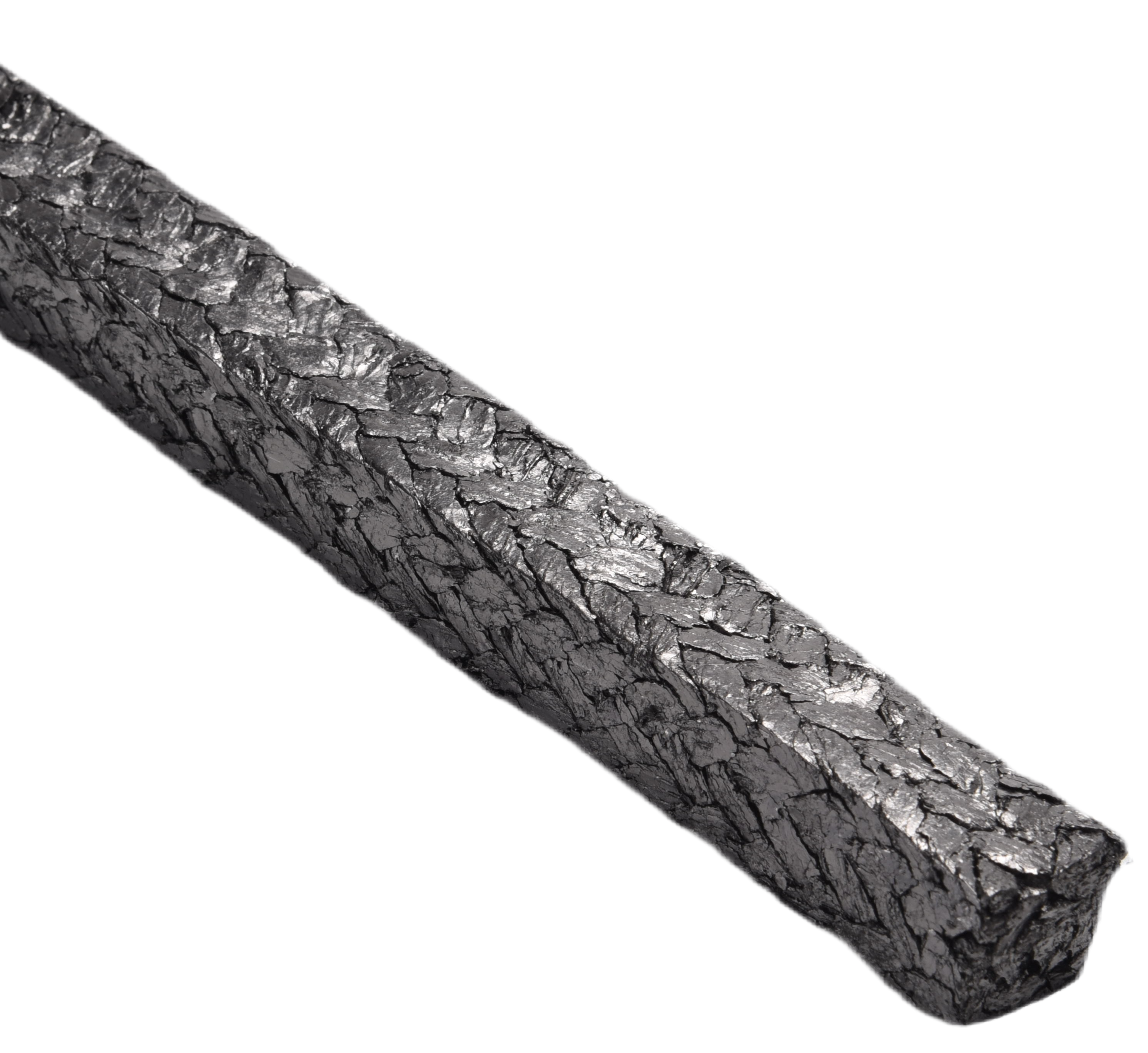

Description Asbestos packing manufactured from high grade asbestos yarn impregnated with oil resisting synthetic compound by a controlled process during which each strand is treated with fine graphite and a special grade of lubricant suited for hot and cold oils, solvents, aromatic hydrocarbons, petroleum distillates and oil refinery services. Please specify when the rod or shaft is STAINLESS STEEL
Advantages Advantages: • Excellent valves and flanges group packing. • Metallic reinforcement render high temp. and high pressure capability. • Emission proof packing, saves leakage and down time costs. • Option of PTFE dispersion available.
Service Used as stuffing box packing for high pressure and temperature valves
Technical Data
Property | Value |
---|---|
Continuous Temperature | -200 ºC |
Short Term Temperature | 650 ºC |
Pressure (Bar) Static | 300 |
Speed Mtr/S Static | 0.5 |
pH | 0-14 |
